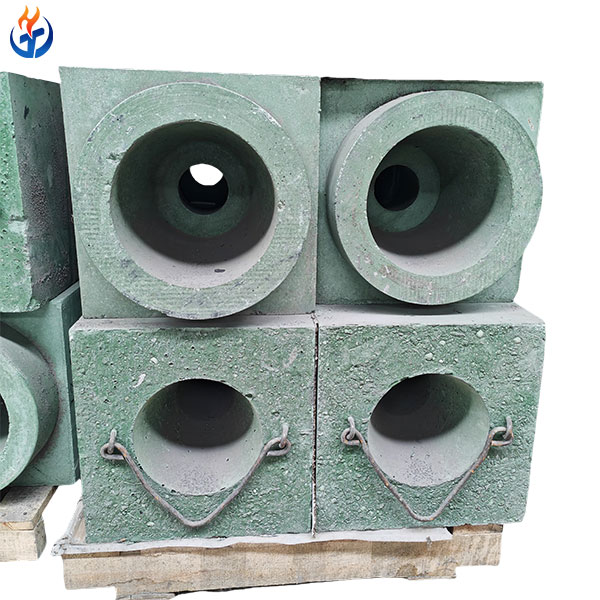

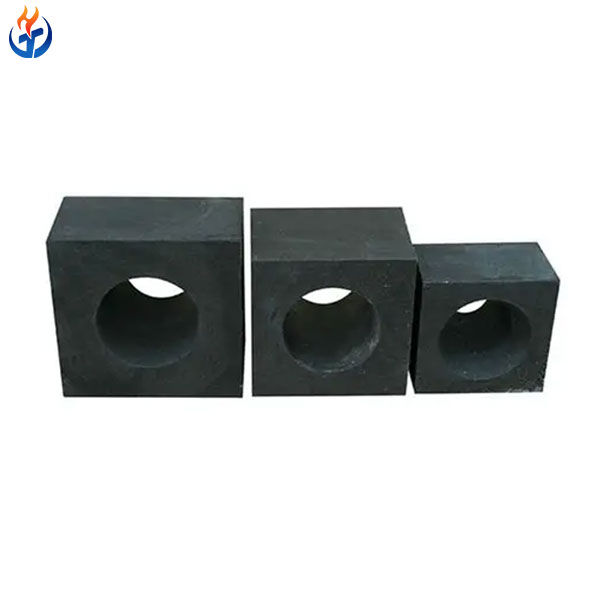

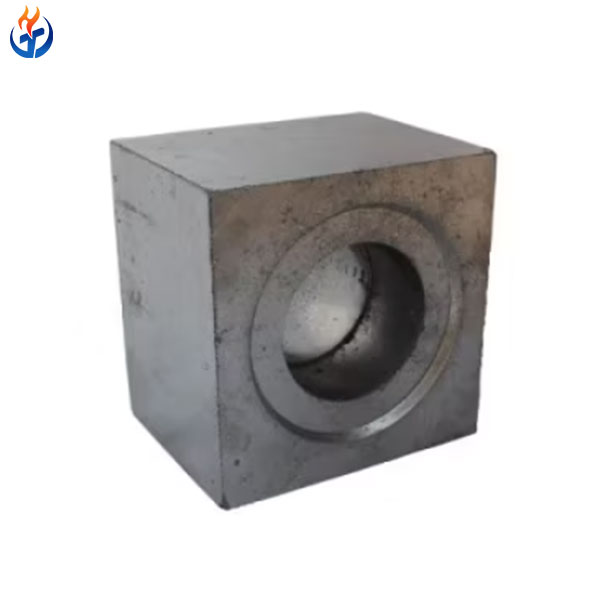

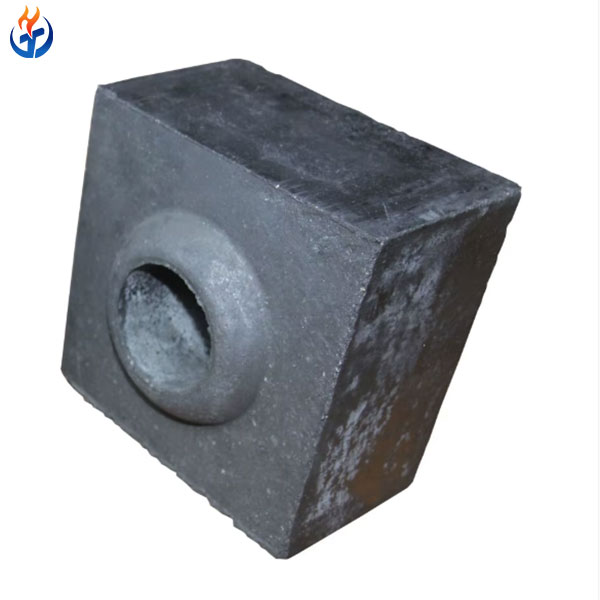

Premium Steel Ladle Well Blocks for steelmaking ladles used in continuous casting and secondary refining operations. The well block is a critical precast refractory component installed at the bottom of the steel ladle to securely house the inner nozzle, collector nozzle, slide gate nozzle, or argon purging plug. It provides reliable structural support, excellent sealing performance, and precise alignment of the nozzle system throughout the casting process.
Manufactured using carefully selected high-purity refractory materials—including high alumina, alumina-carbon, magnesia-carbon, and zirconia-based compositions—our steel ladle well blocks exhibit outstanding resistance to molten steel erosion, slag corrosion, thermal shock, and mechanical wear. Their dense microstructure minimizes steel penetration while ensuring long service life under severe operating conditions.
With advanced forming technology and strict quality control, Xintai Refractory supplies customized well blocks compatible with various ladle capacities, slide gate systems, and nozzle configurations used by steel plants worldwide.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Xintai Refractory |
| Product Name | Steel Ladle Well Block |
| Material | High Alumina / Alumina-Magnesia / Magnesia-Carbon / Zirconia |
| Al₂O₃ Content | 60–95% (Customizable) |
| MgO Content | Up to 85% |
| Bulk Density | 2.7–3.0 g/cm³ |
| Apparent Porosity | ≤18% |
| Cold Crushing Strength | ≥45 MPa |
| Flexural Strength | ≥10 MPa |
| Thermal Shock Resistance | ≥30 Cycles |
| Refractoriness | ≥1790°C |
| Service Life | 15–30 Casting Heats |
| Shape | Standard or Customized |
| Manufacturing Process | Precast / Pressed / Monolithic |
| Application | Tundish Bottom Nozzle Seating |
| Packing | Export Wooden Case |
| Storage | Store Dry, Keep Upright, Avoid Impact |
Key Features
- Excellent Nozzle Positioning: The well block accurately supports the inner nozzle or slide gate nozzle, ensuring correct alignment and stable molten steel flow during tapping and casting.
- Outstanding Erosion Resistance: Manufactured from dense refractory materials, the well block effectively resists erosion caused by high-speed molten steel and abrasive slag.
- Superior Thermal Shock Resistance: Optimized refractory formulations enable the product to withstand repeated heating and cooling cycles without cracking or structural failure.
- Strong Corrosion Resistance: Excellent resistance to both acidic and basic slags helps extend service life while maintaining dimensional stability throughout casting operations.
- Reliable Sealing Performance: High dimensional precision ensures a tight fit between the nozzle and well block, minimizing the risk of molten steel leakage and improving production safety.
- Long Service Life: Excellent mechanical strength and wear resistance allow the well block to perform reliably through extended ladle campaigns, reducing maintenance frequency and operating costs.
- High Compatibility: Suitable for a wide range of slide gate systems, collector nozzles, inner nozzles, and argon purging plugs used in modern steel plants.
Typical Applications
Steel ladle well blocks are widely used in:
- Steelmaking ladles
- Secondary refining ladles
- LF (Ladle Furnace)
- RH Degassing Systems
- Continuous casting plants
- Carbon steel production
- Alloy steel production
- Stainless steel manufacturing
- Special steel production

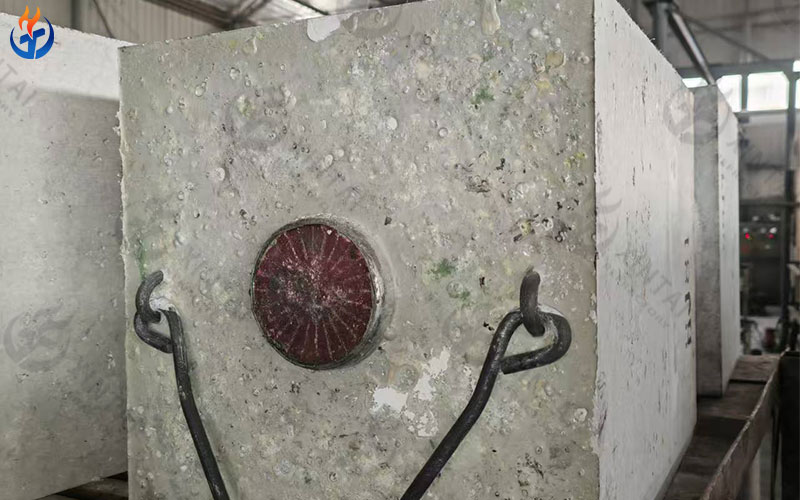

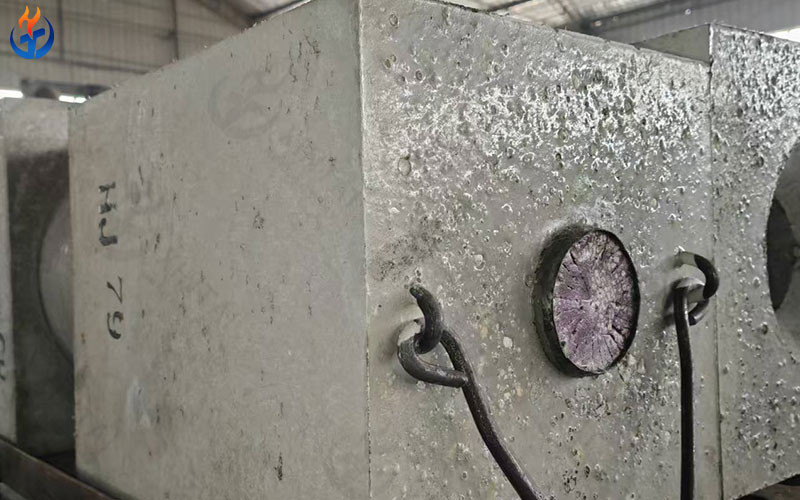

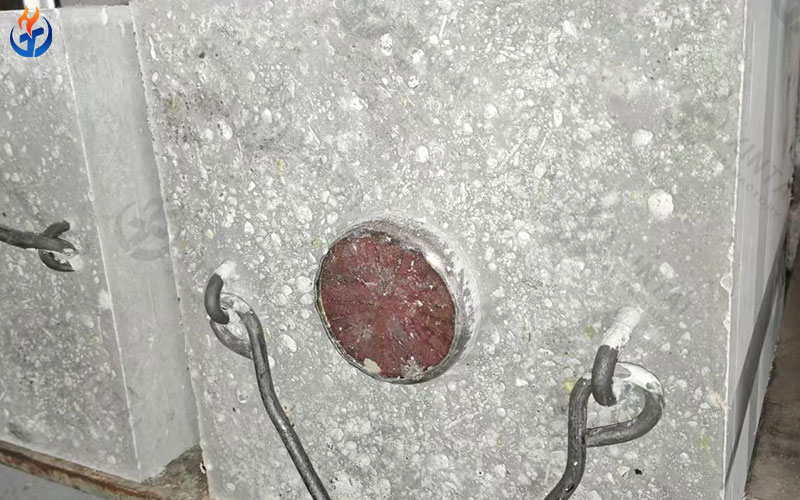

Production Details of Tundish Well Block
Premium Raw Materials
Only high-purity refractory aggregates and fine powders are selected to ensure stable chemical composition and excellent performance.
Precision Forming Technology
Hydraulic pressing and precision precasting processes guarantee high density, dimensional accuracy, and consistent quality.
Controlled Drying and High-Temperature Firing
Scientific heat treatment ensures excellent bonding strength, low porosity, and outstanding thermal stability.
Comprehensive Quality Inspection
Each production batch undergoes:
- Chemical composition analysis
- Bulk density testing
- Apparent porosity testing
- Cold crushing strength testing
- Thermal shock resistance testing
- Dimensional inspection
Customized Manufacturing
Customized products are available according to:
- Ladle capacity
- Nozzle type
- Slide gate system
- Purging plug design
- Steel grade
- Slag chemistry
- Customer drawings

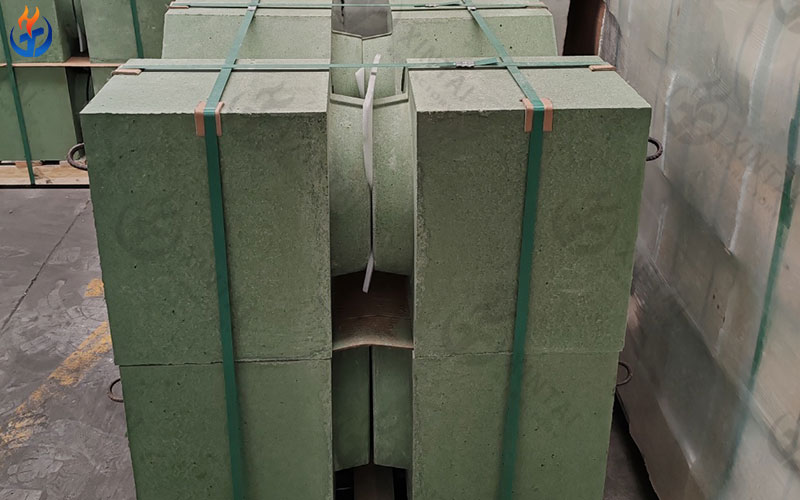

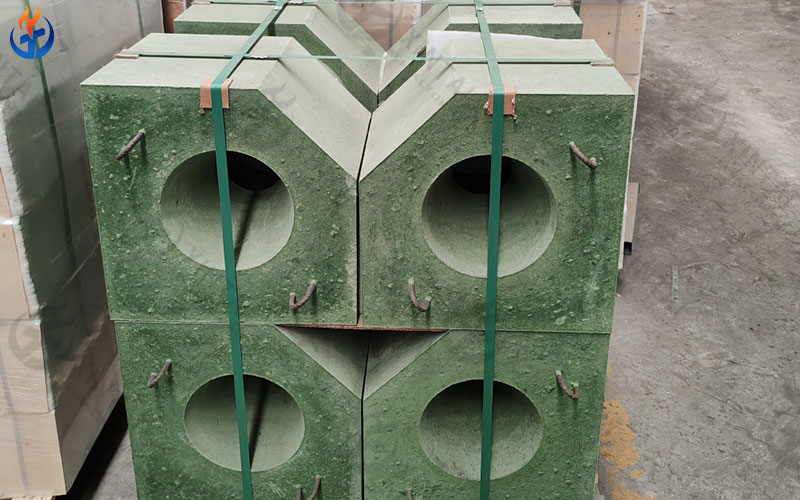

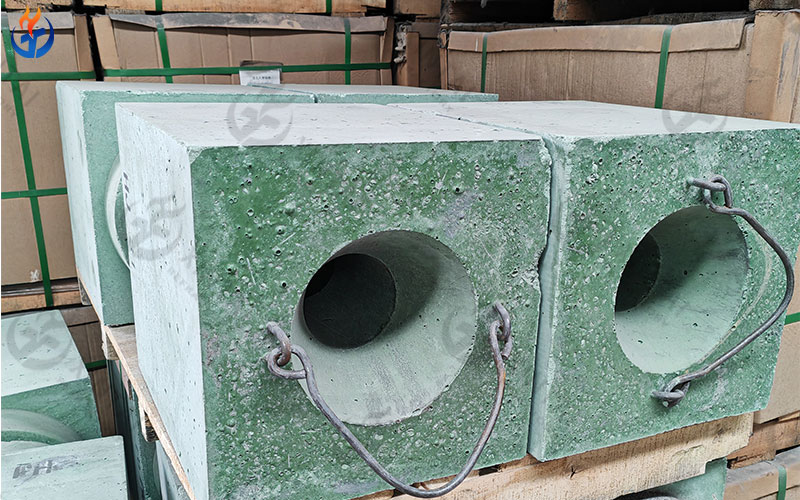

Packing and Shipping Details
Packing: Standard export wooden cases with internal cushioning to prevent impact damage.
Moisture Protection: Products are packed with moisture-proof materials to ensure dryness.
Handling Instructions: Keep upright during storage and transportation. Handle with care to avoid mechanical shock.
Shipping Methods: Sea freight, railway, or truck transportation depending on customer location.
Frequently Asked Questions (FAQ)
Q1: What is a Steel Ladle Well Block?
A Steel Ladle Well Block is a precast refractory component installed at the bottom of a steel ladle. It supports the inner nozzle, collector nozzle, or purging plug while protecting the ladle bottom from molten steel and slag.
Q2: What materials are available?
Xintai Refractory manufactures steel ladle well blocks using high alumina, alumina-carbon, magnesia-carbon, and zirconia-based refractory materials according to customer requirements.
Q3. What are the main advantages?
- Excellent erosion resistance
- Outstanding thermal shock resistance
- Reliable nozzle sealing
- High mechanical strength
- Long service life
- Reduced maintenance costs
Q4: Can the dimensions be customized?
Yes. We manufacture customized well blocks based on customer drawings, nozzle systems, ladle capacity, and operating conditions.
Q5: How long is the service life?
Depending on steel grade, slag chemistry, operating temperature, and casting practice, our Steel Ladle Well Blocks typically achieve 20–40 ladle heats.
