Xintai’s Refractory Castable Precast Blocks are high-performance prefabricated refractory components manufactured from advanced refractory castables. These blocks are designed according to specific furnace structures and application requirements, then produced through precision molding, curing, drying, and heat treatment processes in a controlled factory environment.
Unlike traditional on-site castable installation, precast refractory blocks are ready-to-install solutions that significantly reduce construction time and improve installation efficiency. They provide excellent mechanical strength, thermal shock resistance, dimensional accuracy, and long service life in extreme high-temperature environments.
Refractory Castable Precast Blocks are widely used in electric furnaces, steelmaking equipment, heating furnaces, cement kilns, incinerators, petrochemical furnaces, and other industrial thermal equipment. They can be customized into complex shapes such as furnace roofs, burner blocks, tapholes, ladle components, and special furnace linings according to customer drawings.
With factory-controlled production and strict quality inspection, Xintai ensures stable performance, reliable durability, and reduced maintenance requirements for high-temperature industrial applications.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Xintai |
| Material Composition | Precast Refractory Blocks (Castable-Based or Custom Formulated) |
| Al₂O₃ Content | ≥60% – 95% (depending on grade) |
| Fe₂O₃ Content | ≤1.5% |
| Bulk Density | 2.2 – 2.8 g/cm³ |
| Thermal Conductivity | 1.5 – 2.3 W/(m·K) |
| Cold Crushing Strength | 25 – 60 MPa |
| Maximum Service Temperature | 1600℃ – 1800℃ |
| Standard Size | Customized according to drawings |
| Production Method | Vibration casting / pouring casting |
| Delivery Time | 20 – 35 working days |
Key Features
- High Mechanical Strength: Excellent crushing strength and structural stability under heavy mechanical loads and high-temperature conditions.
- Excellent Thermal Shock Resistance: Designed to withstand rapid temperature changes and reduce cracking or spalling during furnace operation.
- Customized Shapes and Dimensions: Manufactured according to customer drawings, furnace designs, and installation requirements.
- Fast Installation and Reduced Downtime: Precast blocks can be directly transported and installed, greatly shortening furnace construction and repair periods.
- Superior Dimensional Accuracy: Factory production ensures consistent size, shape, and quality compared with traditional on-site casting.
- Long Service Life: High-quality refractory materials provide excellent resistance against abrasion, corrosion, and thermal stress.
- Improved Furnace Efficiency: Seamless installation reduces heat loss and improves the overall thermal performance of furnace linings.
Typical Applications
- Steel Industry: Electric arc furnace (EAF) roofs, Furnace taphole blocks, Ladle impact areas, Steelmaking furnace linings, Burner blocks, Launder systems
- Cement Industry: Rotary kiln components, Cooler zones, Preheater systems, High-temperature transition areas
- Industrial Furnace Applications: Heating furnace roofs and walls, Boiler furnace components, Waste incinerators, Heat recovery systems, Petrochemical reactors, Non-ferrous metal melting furnaces
- Special Applications: Customized furnace lining components, Complex-shaped refractory structures, High-temperature repair projects
Production Details
Xintai Refractory Castable Precast Blocks are manufactured using advanced casting technologies, including vibration casting and precision pouring methods. High-purity refractory aggregates, binders, and additives are carefully selected according to the required service conditions.
The production process includes:
- Raw Material Selection
High-quality alumina, corundum, silicon carbide, and other refractory materials are selected according to application requirements. - Material Mixing
Raw materials are accurately mixed to ensure uniform composition and stable performance. - Customized Mold Design
Special molds are produced based on customer drawings and furnace structure requirements. - Casting and Forming
The refractory castable mixture is poured into molds and compacted through vibration technology. - Curing and Drying
Precast blocks are carefully cured and dried to achieve required strength. - Quality Inspection
Each block is tested for dimensions, density, strength, and appearance before shipment.
Xintai provides customized refractory precast solutions for different furnace types and operating conditions, helping customers achieve reliable furnace performance and longer refractory service life.

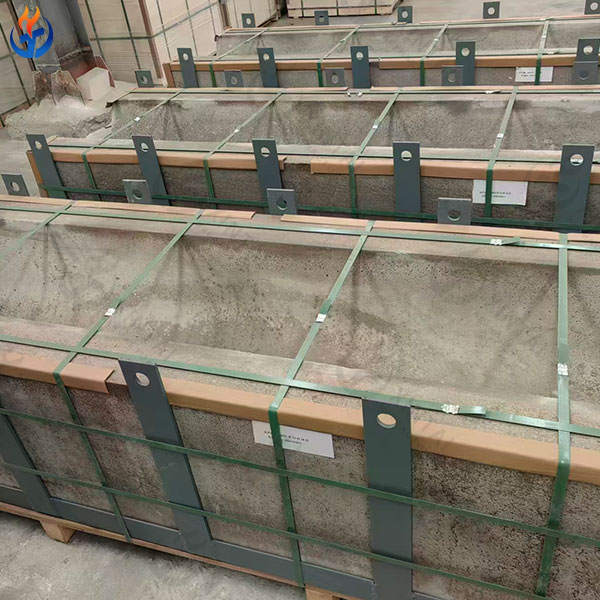

Packing and Shipping Details
- Strong wooden pallets with waterproof plastic film wrapping
- Protective packaging to prevent damage during transportation
- Corner protection for irregular-shaped precast blocks
- Fumigation-treated wooden cases available
- Export-standard packing for global shipment
- Customized labels and markings according to customer requirements
- Shipping by sea, rail, or land transportation
Frequently Asked Questions (FAQ)
Q1: What are Refractory Castable Precast Blocks used for?
Refractory Castable Precast Blocks are mainly used for high-temperature furnace components, including furnace roofs, tapholes, burner blocks, ladle systems, and other areas requiring high strength and thermal resistance.
Q2: Can Xintai customize precast refractory blocks?
Yes. Xintai can manufacture customized refractory precast blocks according to customer drawings, furnace designs, dimensions, and operating conditions.
Q3. What materials are used for precast refractory blocks?
Depending on application requirements, materials may include high alumina castables, corundum castables, silicon carbide castables, and other specially formulated refractory mixtures.
Q4. What is the maximum working temperature of these blocks?
The maximum service temperature can reach 1600℃ – 1800℃, depending on the material grade and application environment.
Q5. What are the advantages compared with traditional castable construction?
Precast blocks offer faster installation, better dimensional accuracy, stable quality, reduced furnace downtime, and improved lining durability compared with traditional on-site casting methods.
Q6. How long is the production lead time?
The standard delivery time is approximately 20 – 35 working days, depending on product specifications, quantity, and customization requirements.
