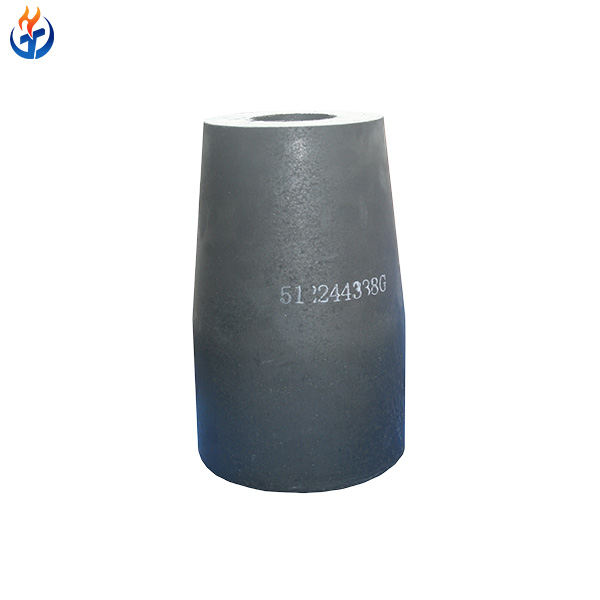

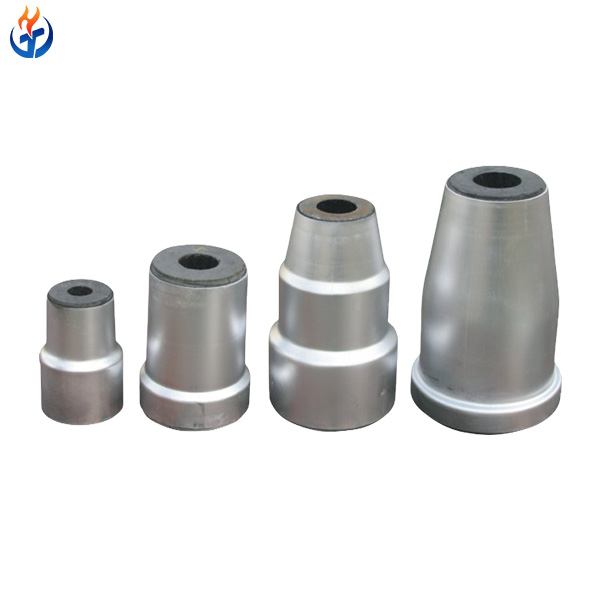

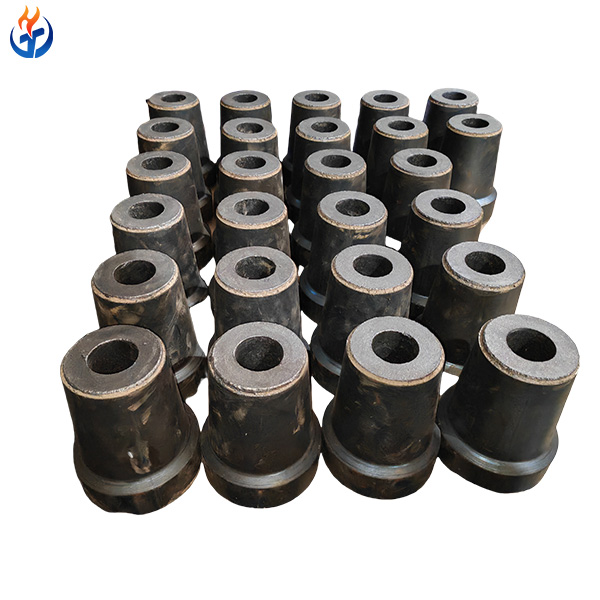

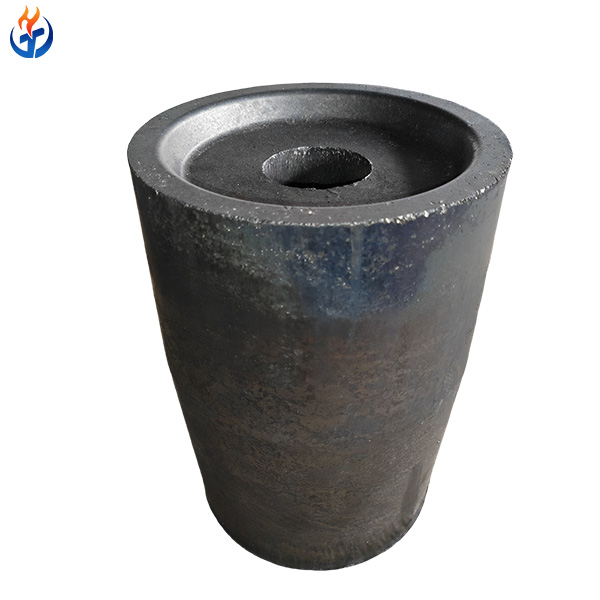

The Ladle Nozzle for Continuous Casting of Steel is a critical refractory component designed to control the flow of molten steel from the ladle to the tundish during the continuous casting process. Made from high-purity alumina carbon, zirconia carbon, or magnesia carbon materials, the nozzle ensures smooth, precise, and stable steel flow, maintaining optimal casting quality and minimizing steel loss.
Manufactured with high-temperature sintering and advanced resin bonding technology, our ladle nozzles feature superior resistance to erosion, corrosion, and thermal shock, offering consistent performance and long service life even under severe operating conditions in steel plants.
Technical Specifications
| Items | Z-70 | Z-95-1 | Z-95-2 | Z-95-3 | Z-95-4 | W-1 | W-2 |
|---|---|---|---|---|---|---|---|
| Zr(Hf) O2 (%) ≥ | 70 | 93 | 93 | 93 | 93 | / | / |
| Al2O3 (%) ≥ | / | / | / | / | / | 75 | 80 |
| Apparent porosity (%) ≤ | 22 | 20 | 16 | 15 | 13 | 24 | 18 |
| Bulk Density (g/cm3) ≥ | 3.8 | 4.5 | 4.8 | 5.1 | 5.3 | 2.3 | 2.6 |
Key Features
High Purity Raw Materials: Made from sintered corundum, fused mullite, and zirconia-based materials.
Excellent Thermal Shock Resistance: Maintains stability under rapid temperature fluctuations during casting.
Superior Erosion and Corrosion Resistance: Withstands molten steel and slag attack for extended service life.
High Mechanical Strength: Ensures consistent performance under pressure and long-term durability.
Accurate Flow Control: Provides smooth molten steel flow for stable and continuous casting operations.
Customization Available: Various sizes and material grades can be tailored to meet different ladle and tundish systems.
Typical Applications
Continuous casting of steel in steel plants and foundries
Ladle and tundish flow control systems
Electric arc furnace (EAF) and basic oxygen furnace (BOF) operations
Steel refining and secondary metallurgy processes
Production Details
Materials: Alumina Carbon, Zirconium Alumina Carbon, Magnesia Carbon, Spinel Carbon, Zirconia inserts
Grades: Upper Nozzle (LZ-70, L-70, L-75, L-85); Lower Nozzle (Al-MgO, Corundum); Tundish Nozzle (Zirconia, Alumina Sleeve)
Key Properties: High thermal stability, corrosion & oxidation resistance, bulk density 2.95–5.4 g/cm³, cold crushing strength 40–150 MPa, apparent porosity ≤23%
Dimensions: Customizable according to ladle and tundish requirements
Manufacturing Equipment: Laeis hydraulic press, Eirich mixer, Shimadzu XRF spectrometer, fully automatic refractory production line
Packing and Shipping Details
Packaging: Wooden pallet packing with protective boxes, customized as per client requirements.
Shipping: Sea freight for bulk goods; express delivery for samples.
Delivery Time: Immediate for standard stock; custom orders depend on specification.
Port of Dispatch: China
Frequently Asked Questions (FAQ)
Q1: Can you customize nozzle size and material?
Yes, we provide full customization for diameter, length, and refractory material according to ladle and tundish requirements.
Q2: How do ladle nozzles improve continuous casting efficiency?
They ensure smooth, controlled steel flow from the ladle to the tundish, minimizing turbulence, oxidation, and steel waste.
Q3. Can you customize the nozzle size and grade?
Yes, we offer full customization based on ladle design, steel grade, and casting conditions.
Q4: Do you provide technical support for installation and usage?
Yes, we provide professional pre-sales consultation, installation guidance, and after-sales technical support.
Q5: What are your main export markets?
Our products are exported to over 30 countries, including Southeast Asia, Europe, the Middle East, and North America.
