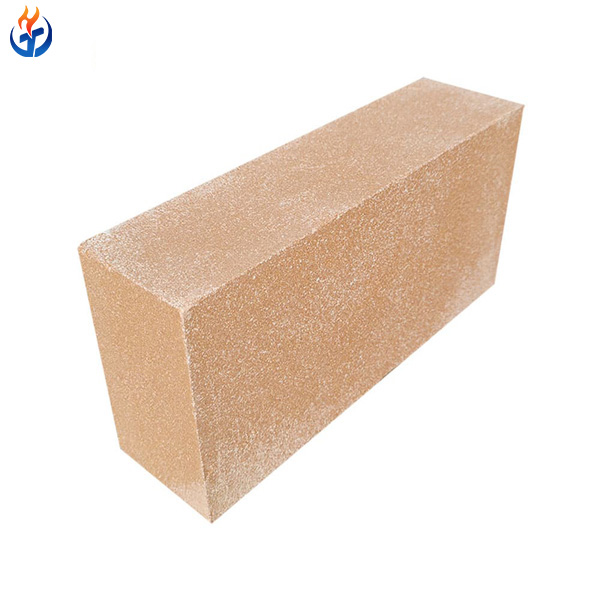

Fire Clay Insulation Brick is a lightweight refractory product made from high-purity fireclay and other insulating materials. It is specially designed for high-temperature environments where heat retention, low thermal conductivity, and energy efficiency are essential. These bricks provide excellent insulation performance, reduce heat loss, and improve furnace efficiency, making them ideal for both hot-face and backup lining applications in industrial furnaces, kilns, and incinerators.
Technical Specifications
| Item | Clay insulation brick (0.8) | Clay insulation brick (1.0) | Clay insulation brick (1.2) |
|---|---|---|---|
| AL₂O₃ (%) | |||
| Fe₂O₃ (%) | |||
| Bulk density (g/cm³) ≤ | 0.8 | 1.0 | 1.2 |
| Cold crushing strength (MPa) ≥ | 2.5 | 3.5 | 4.5 |
| Heated permanent wire (%) | 850℃ *12h | 950℃ *12h | 1050℃ *12h |
| Thermal conductivity (average temperature (350℃ ± 25℃)) (W/m·K) ≤ | 0.35 | 0.4 | 0.5 |
Key Features
Low thermal conductivity for superior insulation
Lightweight structure for reduced heat storage
Good mechanical strength at elevated temperatures
High resistance to thermal shock and chemical attack
Energy-saving and environmentally friendly
Easy installation and cutting on-site
Typical Applications
- Backup insulation layer in high-temperature kilns and furnaces
- Hot-face lining in low-load thermal equipment
- Chimneys, incinerators, reheating furnaces
- Heat treatment furnaces and ceramic tunnel kilns
- Industrial boilers and hot air ducts
Production Details
Fire Clay Insulation Bricks are produced using advanced manufacturing techniques, including high-temperature sintering and precise pore structure control. Raw materials are carefully selected and processed to ensure uniform quality, optimal insulation, and long service life.
Packing and Shipping Details
Packaging: Packed in strong wooden pallets with protective wrapping
Shipping Time: 7–15 working days after order confirmation
Storage: Keep in dry, ventilated area to avoid moisture absorption
Customization: Shapes and sizes can be tailored to customer specifications
Frequently Asked Questions (FAQ)
Q1: What is Fire Clay Insulation Brick used for?
It is mainly used as a thermal insulation material in high-temperature equipment such as kilns, furnaces, incinerators, and heat treatment ovens to reduce heat loss and improve energy efficiency.
Q2: What is the maximum service temperature of Fire Clay Insulation Bricks?
Typically, these bricks can be used continuously up to 1050°C.
Q3. How does Fire Clay Insulation Brick differ from other insulating bricks?
Fire Clay Insulation Brick is made primarily from fireclay with a good balance of alumina and silica, offering moderate thermal resistance and good mechanical strength at a competitive price, making it suitable for many industrial insulation needs.
Q4: Can Fire Clay Insulation Bricks be customized in size and shape?
Yes, we offer custom sizes and shapes to meet specific project requirements.
Q5: How should Fire Clay Insulation Bricks be stored before use?
They should be stored in a dry, ventilated area to prevent moisture absorption, which can affect their insulating properties and structural integrity.
