Xintai’s High Strength Precast Refractory Bricks are custom-engineered monolithic refractory blocks made from high-performance castables. These precast bricks are designed to offer superior mechanical strength, exceptional thermal resistance, and precise dimensional stability for demanding high-temperature industrial environments. Each unit is manufactured in a controlled environment and fired at high temperatures to ensure optimal performance and minimal shrinkage.
Ideal for areas exposed to extreme abrasion, thermal shock, and mechanical load, these bricks significantly reduce on-site installation time, minimize downtime, and extend the life of refractory linings.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | Xintai |
| Material Composition | Precast Refractory Bricks (Castable-Based) |
| Al₂O₃ Content | ≥60% – 95% (depending on grade) |
| Fe₂O₃ Content | ≤1.5% |
| Bulk Density | 2.2 – 2.8 g/cm³ |
| Thermal Conductivity | 1.5 – 2.3 W/(m·K) |
| Cold Crushing Strength | 25 – 60 MPa |
| Maximum Service Temperature | 1600℃ – 1800℃ |
| Standard Size | Customized according to drawings |
| Delivery Time | 20 – 35 working days |
Key Features
High mechanical and structural strength
Excellent resistance to thermal shock and spalling
Preformed shapes minimize installation time
Improved lining life in harsh service conditions
Custom-made to match complex geometries and repair needs
Consistent quality from controlled factory casting and firing
Typical Applications
Cement rotary kilns and cooler zones
Power plant boilers and incinerators
Steel and non-ferrous metal furnaces
Petrochemical reactors
Waste heat recovery systems
Burner blocks, launder systems, and tap holes

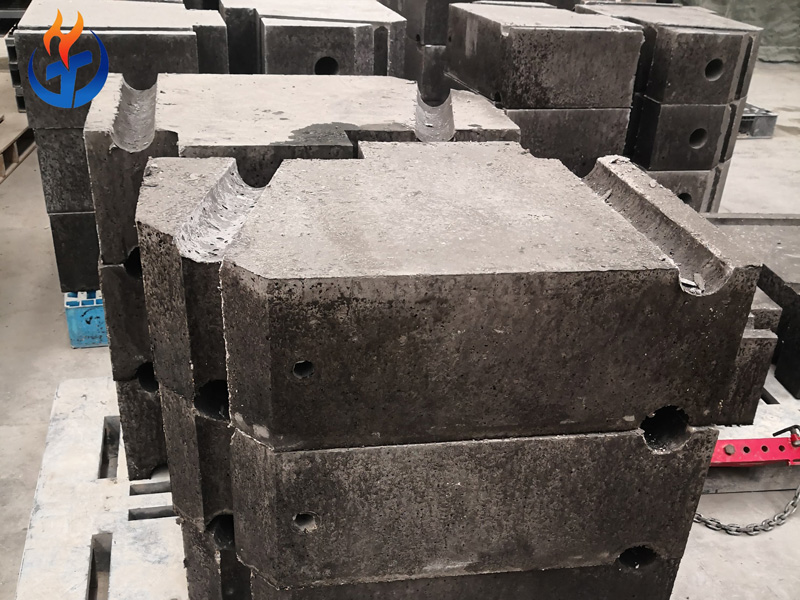

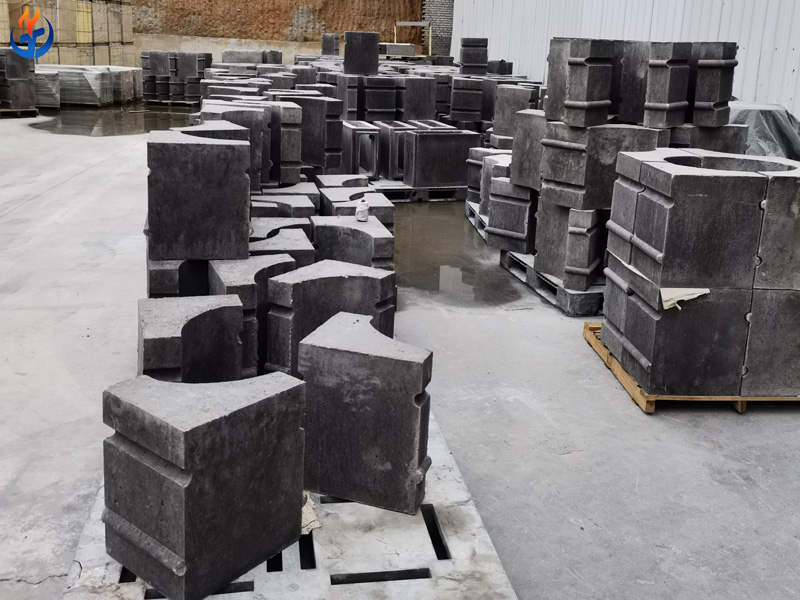

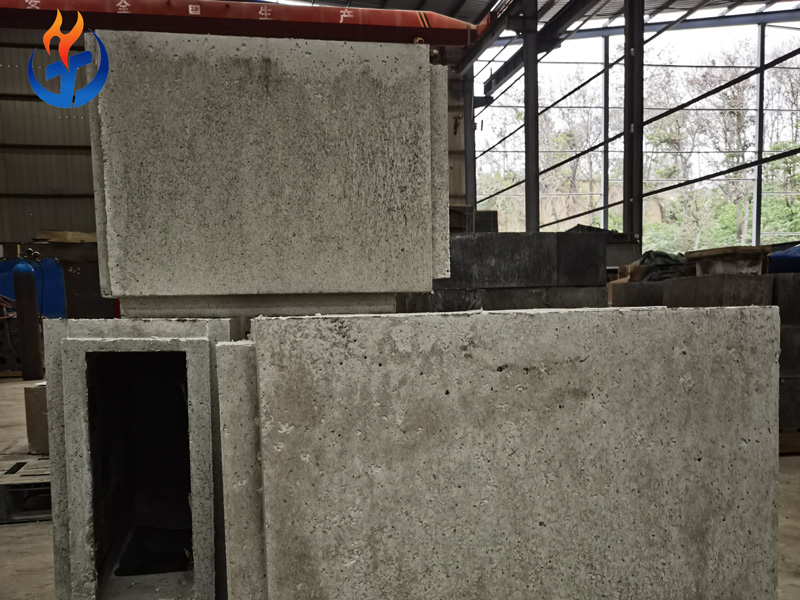

Production Details
Our precast refractory bricks are manufactured using vibration casting or pouring techniques with carefully selected high-purity raw materials. Molds are customized to fit customer specifications. After curing and drying, the bricks are fired at high temperatures for optimal strength and thermal stability.
Packing and Shipping Details
Strong wooden pallets with plastic film wrapping
Corner protection and fumigation-treated packaging
Global delivery by sea or land freight
Optional markings or labels according to customer requirements
Frequently Asked Questions (FAQ)
Q1: What’s the difference between precast refractory bricks and traditional refractory bricks?
Precast bricks are pre-formed blocks made from castable materials. Unlike shaped bricks made by pressing, precast units allow for complex designs and offer higher strength and installation efficiency.
Q2: Can you produce according to our drawings?
Yes. We specialize in custom-designed precast blocks based on your drawings or dimensions.
Q3. What is the average service life of precast refractory shapes?
It depends on the application and environment, but typically lasts longer than in-situ cast linings due to superior density and firing.
